NTLUD3A260PZTAG

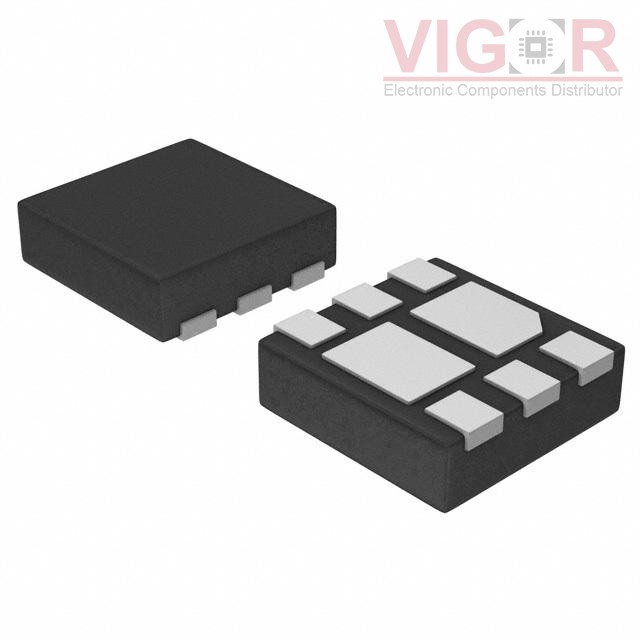

Image is for reference,
please contact us to get the real picture

Part No :: NTLUD3A260PZTAG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2P-CH 20V 1.3A 6UDFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: NTLUD3A260PZTAG PDF

Availability: 5521 pieces

Unit Price: ~~$0.50000~~

Current price of NTLUD3A260PZTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTLUD3A260PZTAG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	1.3A
Rds On (Max) @ Id, Vgs:	200mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	4.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	300pF @ 10V
Power - Max:	500mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-UFDFN Exposed Pad
Supplier Device Package:	6-UDFN (1.6x1.6)
