IRF3546MTRPBF

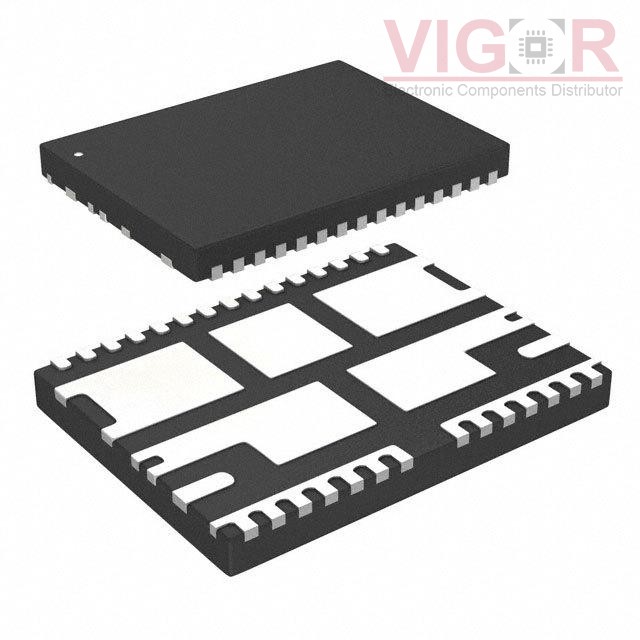

Image is for reference,
please contact us to get the real picture

Part No :: IRF3546MTRPBF

Manufacturer: VIGOR

Description: DUAL PHASE POWIRBLOCK

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: IRF3546MTRPBF PDF

Availability: 3000 pieces

Unit Price: ~~$3.45000~~

Current price of IRF3546MTRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRF3546MTRPBF Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	4 N-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	25V
Current - Continuous Drain (Id) @ 25°C:	16A (Tc), 20A (Tc)
Rds On (Max) @ Id, Vgs:	3.9mOhm @ 27A, 10V
Vgs(th) (Max) @ Id:	2.1V @ 35µA
Gate Charge (Qg) (Max) @ Vgs:	15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	1310pF @ 13V
Power - Max:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	41-PowerVFQFN
Supplier Device Package:	41-PQFN (6x8)
