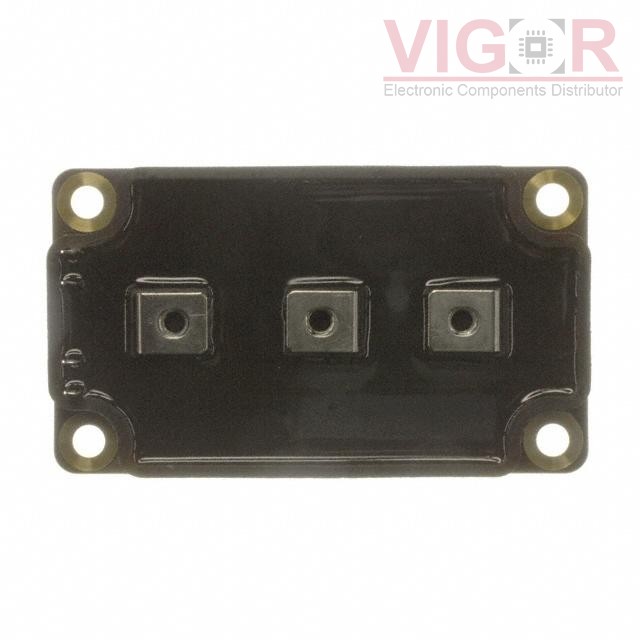

APTM20AM04FG

Image is for reference,
please contact us to get the real picture

Part No :: APTM20AM04FG

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET 2N-CH 200V 372A SP6

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM20AM04FG PDF

Availability: 0 pieces

Unit Price: ~~$263.96000~~

Current price of APTM20AM04FG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM20AM04FG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	200V
Current - Continuous Drain (Id) @ 25°C:	372A
Rds On (Max) @ Id, Vgs:	5mOhm @ 186A, 10V
Vgs(th) (Max) @ Id:	5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	560nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	28900pF @ 25V
Power - Max:	1250W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6
