IPG20N06S4L11ATMA2

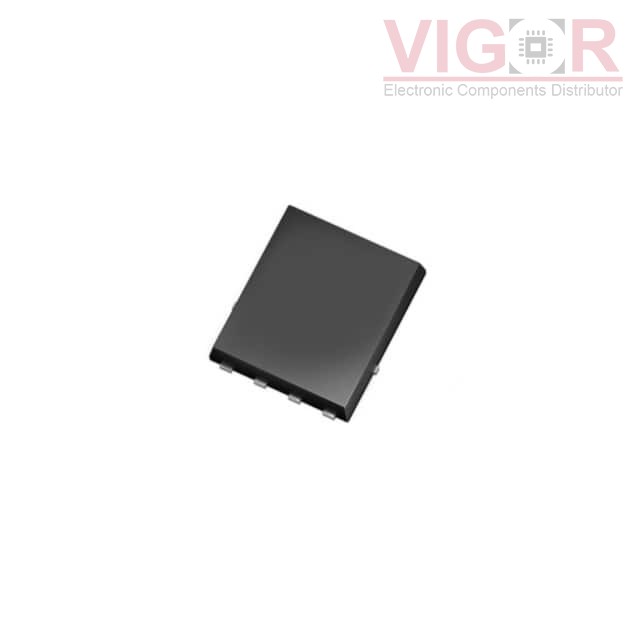

Image is for reference,
please contact us to get the real picture

Part No :: IPG20N06S4L11ATMA2

Manufacturer: IR (Infineon Technologies)

Description: MOSFET_)40V 60V)

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: IPG20N06S4L11ATMA2 PDF

Availability: 4975 pieces

Unit Price: ~~$2.01000~~

Current price of IPG20N06S4L11ATMA2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPG20N06S4L11ATMA2 Specifications

Type	Description
Series:	Automotive, AEC-Q101, OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	20A (Tc)
Rds On (Max) @ Id, Vgs:	11.2mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 28µA
Gate Charge (Qg) (Max) @ Vgs:	53nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	4020pF @ 25V
Power - Max:	65W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerVDFN
Supplier Device Package:	PG-TDSON-8-10

Please confirm the specifications of the products when ordering.
