NTLJD3183CZTAG

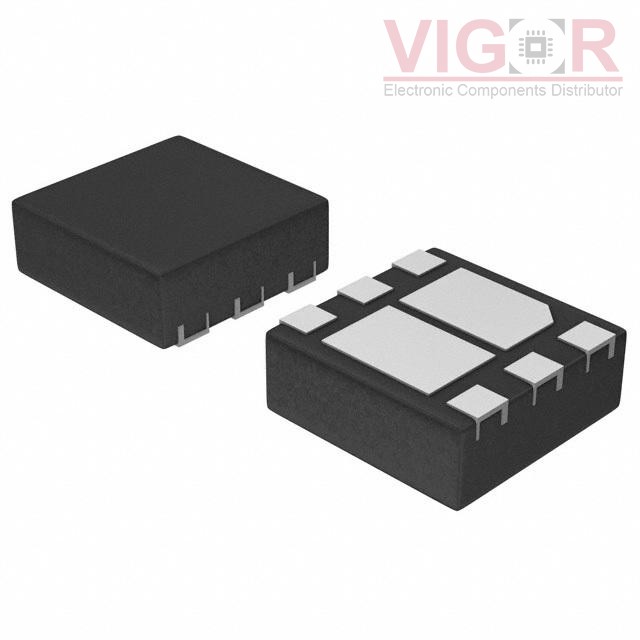

Image is for reference,
please contact us to get the real picture

Part No :: NTLJD3183CZTAG

Manufacturer: VIGOR

Description: SMALL SIGNAL P-CHANNEL MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: NTLJD3183CZTAG PDF

Availability: 12165 pieces

Unit Price: ~~$0.20000~~

Current price of NTLJD3183CZTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTLJD3183CZTAG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	2.6A, 2.2A
Rds On (Max) @ Id, Vgs:	68mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	355pF @ 10V
Power - Max:	710mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-WDFN (2x2)
