DF23MR12W1M1PB11BPSA1

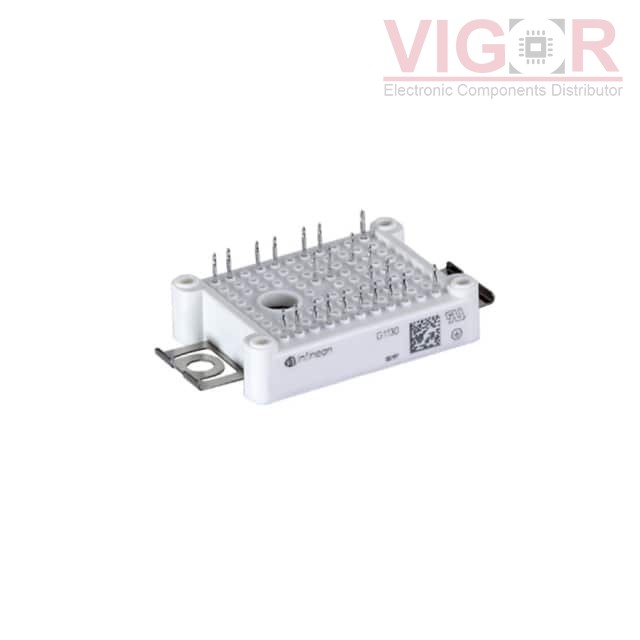

Image is for reference,
please contact us to get the real picture

Part No :: DF23MR12W1M1PB11BPSA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET MODULE 1200V

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: DF23MR12W1M1PB11BPSA1 PDF

Availability: 29 pieces

Unit Price: ~~$90.60000~~

Current price of DF23MR12W1M1PB11BPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF23MR12W1M1PB11BPSA1 Specifications

Type	Description
Series:	EasyPACK™
Package:	Tray
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	25A (Tj)
Rds On (Max) @ Id, Vgs:	45mOhm @ 25A, 15V
Vgs(th) (Max) @ Id:	5.55V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	62nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds:	1840pF @ 800V
Power - Max:	20mW
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	AG-EASY1B-2
