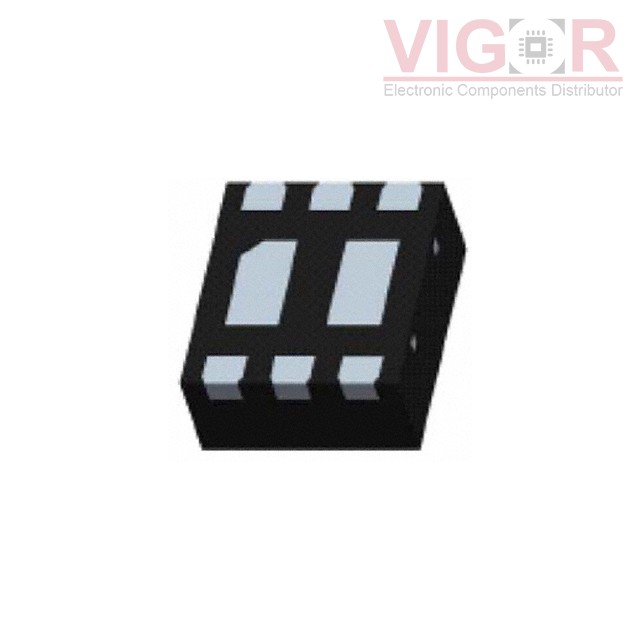

FDMJ1023PZ

Part No :: FDMJ1023PZ

Manufacturer: VIGOR

Description: SMALL SIGNAL P-CHANNEL MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMJ1023PZ PDF

Availability: 4449 pieces

Unit Price: ~~$0.30000~~

Current price of FDMJ1023PZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMJ1023PZ Specifications

Type	Description
Series:	PowerTrench®
Package:	Bulk
Part Status:	Obsolete
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	2.9A
Rds On (Max) @ Id, Vgs:	112mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	400pF @ 10V
Power - Max:	700mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-WFDFN Exposed Pad
Supplier Device Package:	SC-75, MicroFET
