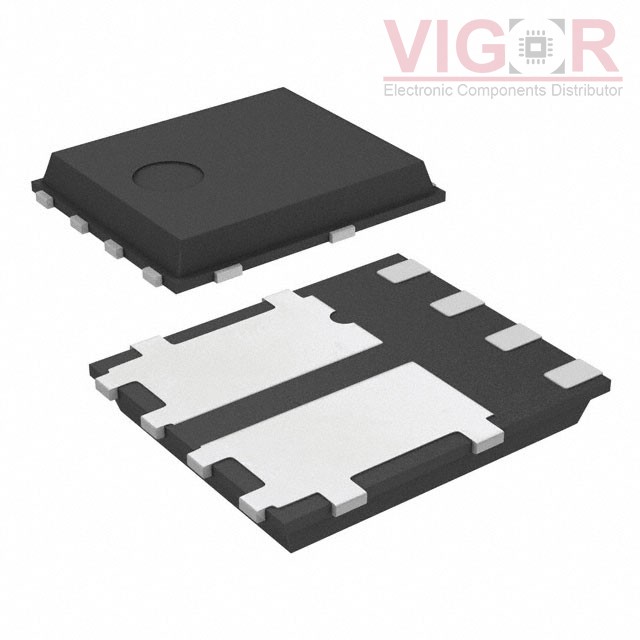

STL20DN10F7

Part No :: STL20DN10F7

Manufacturer: STMicroelectronics

Description: MOSFET 2N-CH 100V 20A PWRFLAT56

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: STL20DN10F7 PDF

Availability: 0 pieces

Unit Price: ~~$1.82000~~

Current price of STL20DN10F7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STL20DN10F7 Specifications

Type	Description
Series:	DeepGATE™, STripFET™ VII
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	100V
Current - Continuous Drain (Id) @ 25°C:	20A
Rds On (Max) @ Id, Vgs:	67mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	408pF @ 50V
Power - Max:	62.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerVDFN
Supplier Device Package:	PowerFlat™ (5x6)

Please confirm the specifications of the products when ordering.
