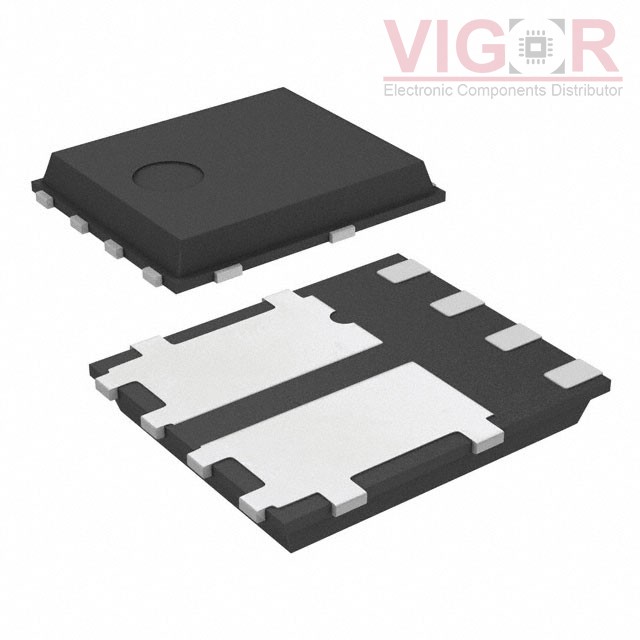

STL7DN6LF3

Part No :: STL7DN6LF3

Manufacturer: STMicroelectronics

VIGOR # :: 2980073

Description: MOSFET 2N-CH 60V 20A 5X6

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: STL7DN6LF3 PDF

Current price of STL7DN6LF3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STL7DN6LF3 Specifications

Type	Description
Series:	Automotive, AEC-Q101, STripFET™ III
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	20A
Rds On (Max) @ Id, Vgs:	43mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	8.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	432pF @ 25V
Power - Max:	52W
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerVDFN
Supplier Device Package:	PowerFlat™ (5x6)
