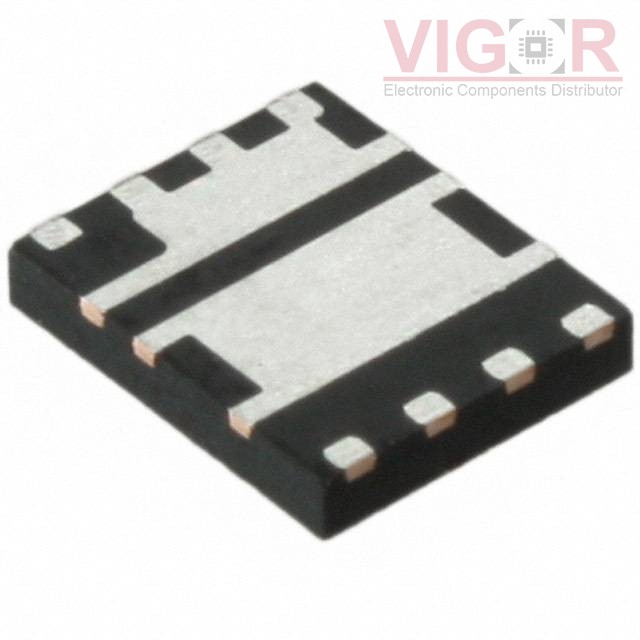

FDMS3660S

Part No :: FDMS3660S

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2980113

Description: MOSFET 2N-CH 30V 30A/60A POWER56

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMS3660S PDF

Current price of FDMS3660S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS3660S Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	30A, 60A
Rds On (Max) @ Id, Vgs:	8mOhm @ 13A, 10V
Vgs(th) (Max) @ Id:	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	29nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1765pF @ 15V
Power - Max:	1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerTDFN
Supplier Device Package:	Power56

Please confirm the specifications of the products when ordering.
