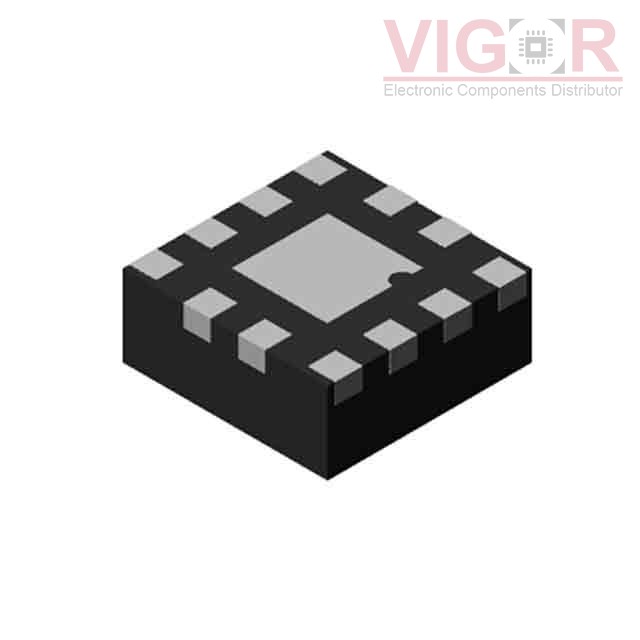

DMN1250UFEL-7

Part No :: DMN1250UFEL-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2980257

Description: MOSFET BVDSS: 8V 24V U-QFN1515-1

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: DMN1250UFEL-7 PDF

Current price of DMN1250UFEL-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMN1250UFEL-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	8 N-Channel, Common Gate, Common Source
FET Feature:	Standard
Drain to Source Voltage (Vdss):	12V
Current - Continuous Drain (Id) @ 25°C:	2A
Rds On (Max) @ Id, Vgs:	450mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	190pF @ 6V
Power - Max:	660mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	12-UFQFN Exposed Pad
Supplier Device Package:	U-QFN1515-12
