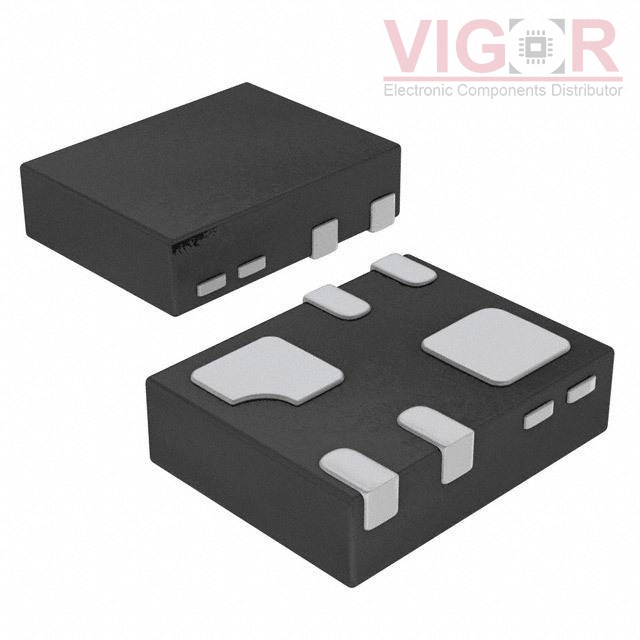

DMC3730UFL3-7

Part No :: DMC3730UFL3-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2980274

Description: MOSFET N/P-CHA 30V 1.1A DFN1310

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: DMC3730UFL3-7 PDF

Current price of DMC3730UFL3-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMC3730UFL3-7 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N and P-Channel Complementary
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	1.1A, 700mA
Rds On (Max) @ Id, Vgs:	460mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id:	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	0.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	65.9pF @ 25V
Power - Max:	390mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-XFDFN Exposed Pad
Supplier Device Package:	X2-DFN1310-6 (Type B)

Please confirm the specifications of the products when ordering.
