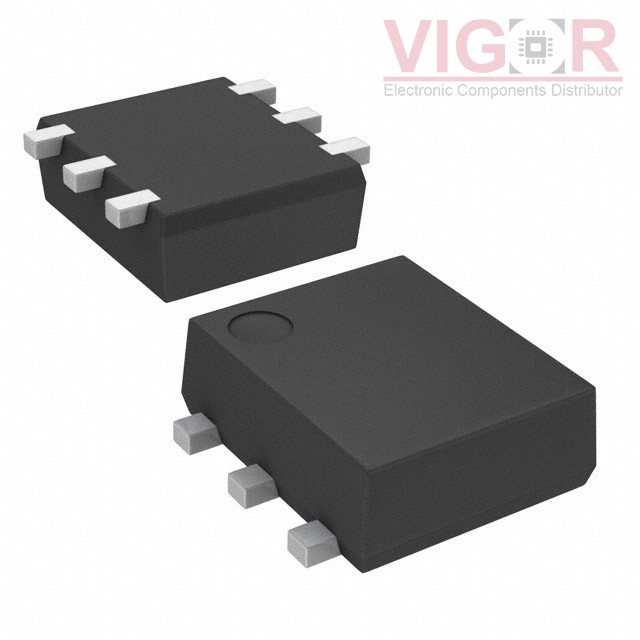

MCH6613-TL-E

Part No :: MCH6613-TL-E

Manufacturer: VIGOR

VIGOR # :: 2980361

Description: SMALL SIGNAL P-CHANNEL MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: MCH6613-TL-E PDF

Current price of MCH6613-TL-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MCH6613-TL-E Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	350mA, 200mA
Rds On (Max) @ Id, Vgs:	3.7Ohm @ 80mA, 4V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	1.58nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	7pF @ 10V
Power - Max:	800mW
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Flat Leads
Supplier Device Package:	6-MCPH
