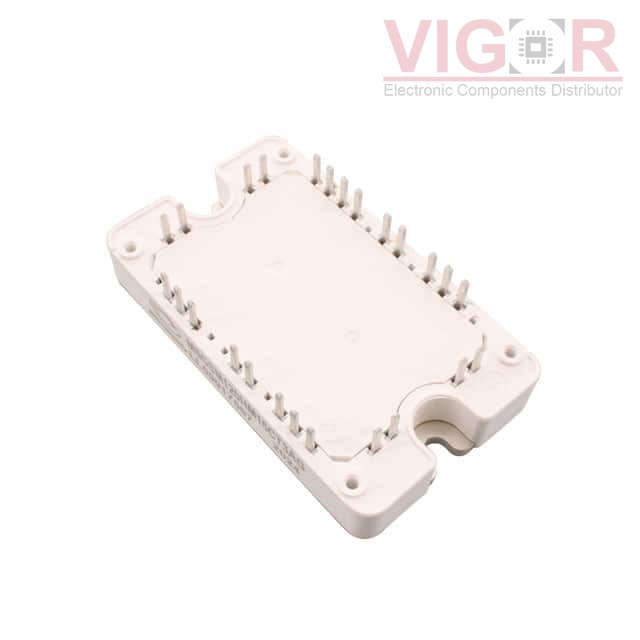

MSCSM120HM16CT3AG

Part No :: MSCSM120HM16CT3AG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2980422

Description: PM-MOSFET-SIC-SBD~-SP3F

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: MSCSM120HM16CT3AG PDF

Current price of MSCSM120HM16CT3AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MSCSM120HM16CT3AG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	4 N-Channel
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	173A (Tc)
Rds On (Max) @ Id, Vgs:	16mOhm @ 80A, 20V
Vgs(th) (Max) @ Id:	2.8V @ 2mA
Gate Charge (Qg) (Max) @ Vgs:	464nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	6040pF @ 1000V
Power - Max:	745W (Tc)
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	SP3F
