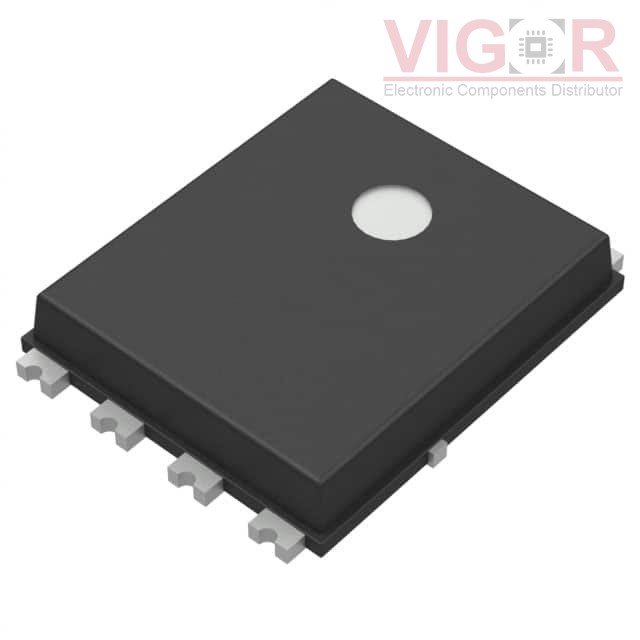

TQM300NB06DCR RLG

Part No :: TQM300NB06DCR RLG

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 2980457

Description: 60V, 25A, DUAL N-CHANNEL POWER M

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: TQM300NB06DCR RLG PDF

Current price of TQM300NB06DCR RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TQM300NB06DCR RLG Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	6A (Ta), 25A (Tc)
Rds On (Max) @ Id, Vgs:	30mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:	3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1020pF @ 30V
Power - Max:	2.5W (Ta), 48W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount, Wettable Flank
Package / Case:	8-PowerTDFN
Supplier Device Package:	8-PDFNU (5x6)
