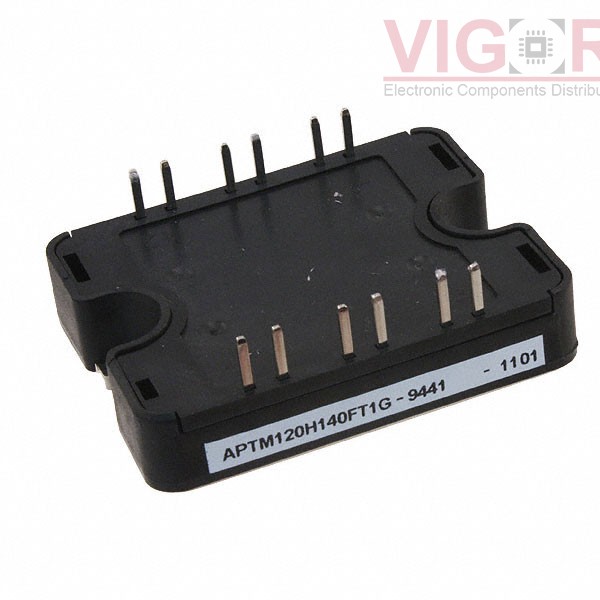

APTM120H140FT1G

Part No :: APTM120H140FT1G

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2980464

Description: MOSFET 4N-CH 1200V 8A SP1

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM120H140FT1G PDF

Current price of APTM120H140FT1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM120H140FT1G Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	4 N-Channel (H-Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	8A
Rds On (Max) @ Id, Vgs:	1.68Ohm @ 7A, 10V
Vgs(th) (Max) @ Id:	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	145nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	3812pF @ 25V
Power - Max:	208W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP1
Supplier Device Package:	SP1

Please confirm the specifications of the products when ordering.
