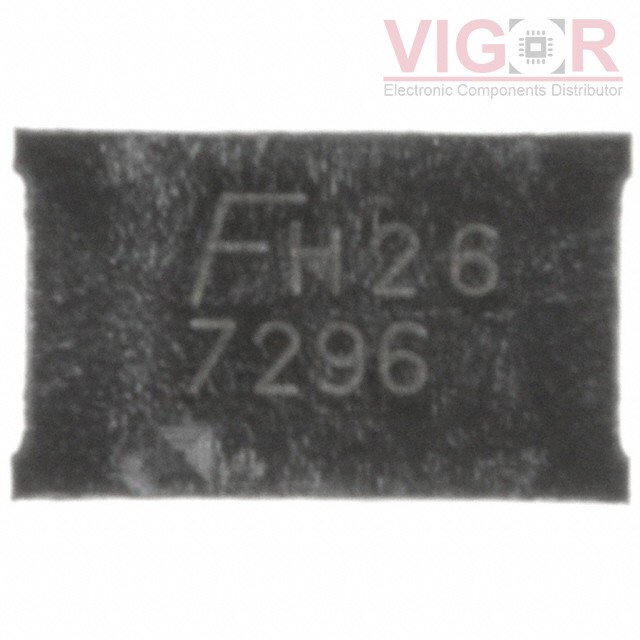

FDZ2553NZ

Part No :: FDZ2553NZ

Manufacturer: VIGOR

VIGOR # :: 2980551

Description: N-CHANNEL POWER MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDZ2553NZ PDF

Current price of FDZ2553NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDZ2553NZ Specifications

Type	Description
Series:	PowerTrench®
Package:	Bulk
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	9.6A
Rds On (Max) @ Id, Vgs:	14mOhm @ 9.6A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:	1240pF @ 10V
Power - Max:	2.1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	18-WFBGA
Supplier Device Package:	18-BGA (2.5x4)
