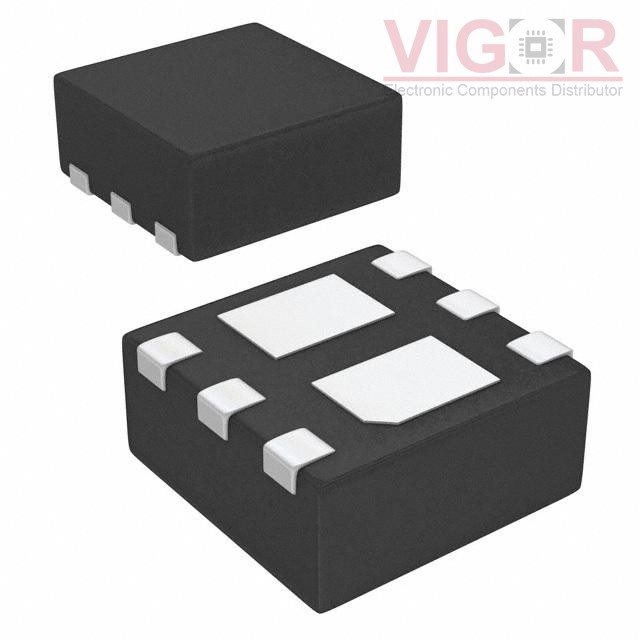

IRLHS6276TRPBF

Part No :: IRLHS6276TRPBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2980556

Description: MOSFET 2N-CH 20V 4.5A PQFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: IRLHS6276TRPBF PDF

Current price of IRLHS6276TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRLHS6276TRPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	4.5A
Rds On (Max) @ Id, Vgs:	45mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id:	1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs:	3.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	310pF @ 10V
Power - Max:	1.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-VQFN
Supplier Device Package:	6-PQFN (2x2)

Please confirm the specifications of the products when ordering.
