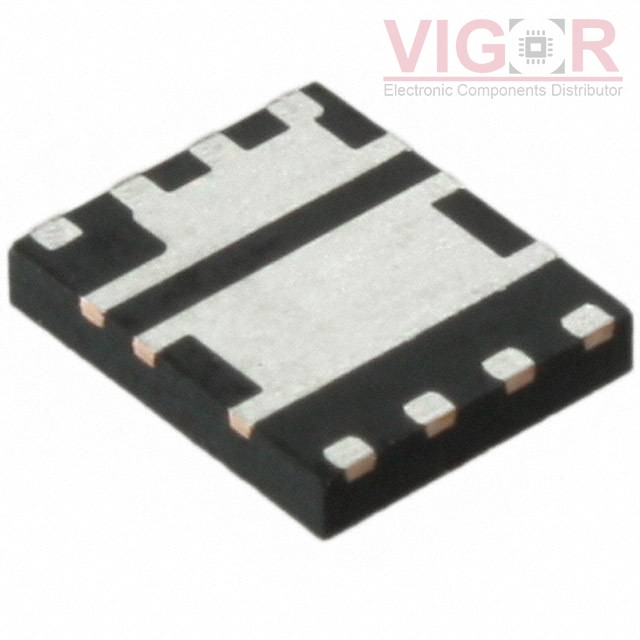

FDMS3620S

Part No :: FDMS3620S

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2980647

Description: MOSFET 2N-CH 25V 17.5A/38A 8PQFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMS3620S PDF

Current price of FDMS3620S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS3620S Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	25V
Current - Continuous Drain (Id) @ 25°C:	17.5A, 38A
Rds On (Max) @ Id, Vgs:	4.7mOhm @ 17.5A, 10V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	26nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1570pF @ 13V
Power - Max:	1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerTDFN
Supplier Device Package:	Power56
