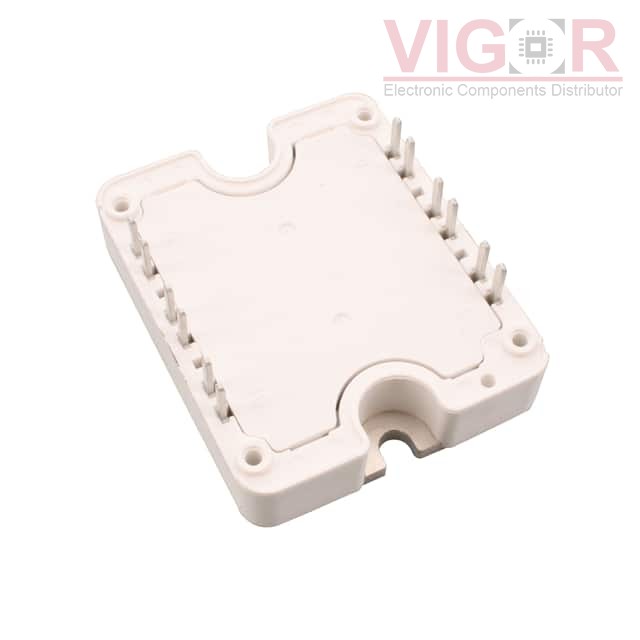

MSCSM120AM16CT1AG

Part No :: MSCSM120AM16CT1AG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2980652

Description: PM-MOSFET-SIC-SBD~-SP1F

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: MSCSM120AM16CT1AG PDF

Current price of MSCSM120AM16CT1AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MSCSM120AM16CT1AG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	2 N Channel (Phase Leg)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	173A (Tc)
Rds On (Max) @ Id, Vgs:	16mOhm @ 80A, 20V
Vgs(th) (Max) @ Id:	2.8V @ 2mA
Gate Charge (Qg) (Max) @ Vgs:	464nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	6040pF @ 1000V
Power - Max:	745W (Tc)
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	SP1F

Please confirm the specifications of the products when ordering.
