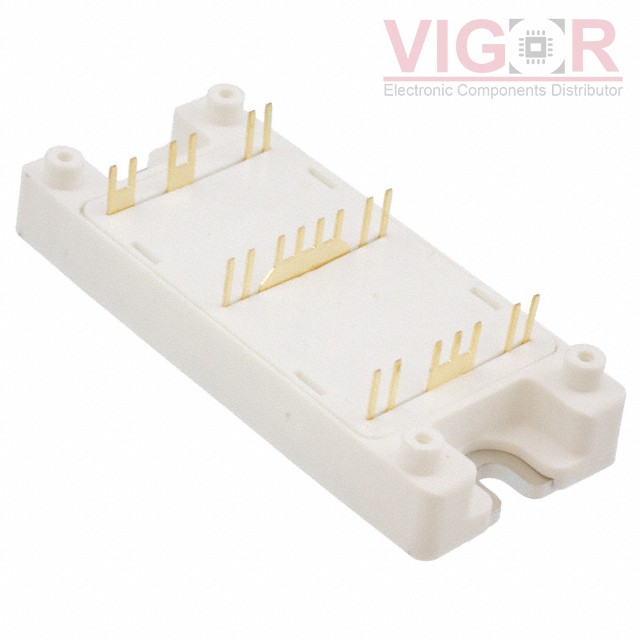

APTM100H45STG

Part No :: APTM100H45STG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2980679

Description: MOSFET 4N-CH 1000V 18A SP4

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM100H45STG PDF

Current price of APTM100H45STG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM100H45STG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	4 N-Channel (H-Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	1000V (1kV)
Current - Continuous Drain (Id) @ 25°C:	18A
Rds On (Max) @ Id, Vgs:	540mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs:	154nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	4350pF @ 25V
Power - Max:	357W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP4
Supplier Device Package:	SP4
