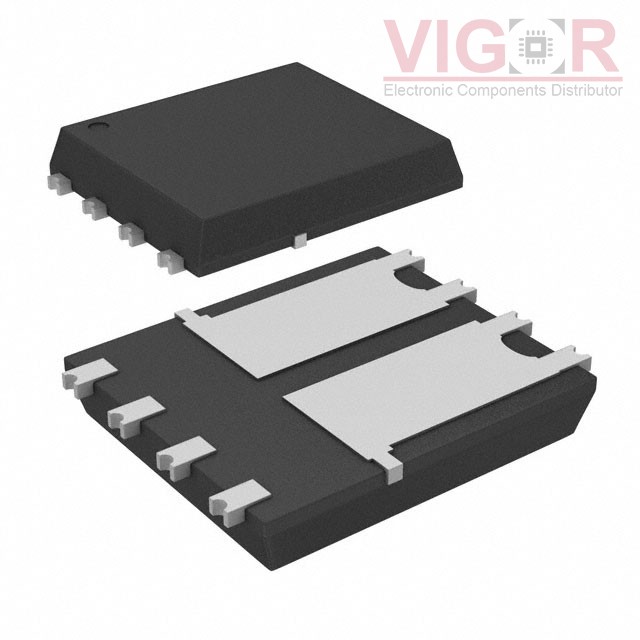

IPG20N10S4L35AATMA1

Part No :: IPG20N10S4L35AATMA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2980692

Description: MOSFET 2N-CH 100V 20A 8TDSON

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: IPG20N10S4L35AATMA1 PDF

Current price of IPG20N10S4L35AATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPG20N10S4L35AATMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q101, OptiMOS™
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	100V
Current - Continuous Drain (Id) @ 25°C:	20A
Rds On (Max) @ Id, Vgs:	35mOhm @ 17A, 10V
Vgs(th) (Max) @ Id:	2.1V @ 16µA
Gate Charge (Qg) (Max) @ Vgs:	17.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1105pF @ 25V
Power - Max:	43W
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount, Wettable Flank
Package / Case:	8-PowerVDFN
Supplier Device Package:	PG-TDSON-8-10
