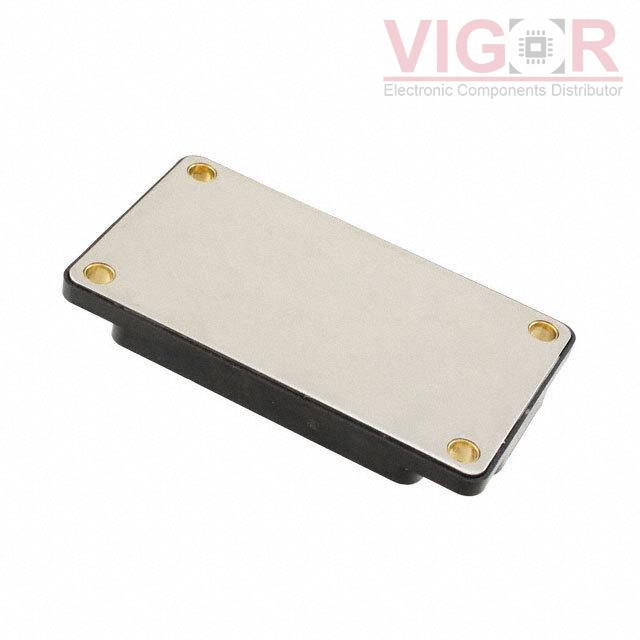

APTM100TA35FPG

Part No :: APTM100TA35FPG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2980699

Description: MOSFET 6N-CH 1000V 22A SP6-P

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM100TA35FPG PDF

Current price of APTM100TA35FPG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM100TA35FPG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	6 N-Channel (3-Phase Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	1000V (1kV)
Current - Continuous Drain (Id) @ 25°C:	22A
Rds On (Max) @ Id, Vgs:	420mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:	5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs:	186nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	5200pF @ 25V
Power - Max:	390W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6-P
