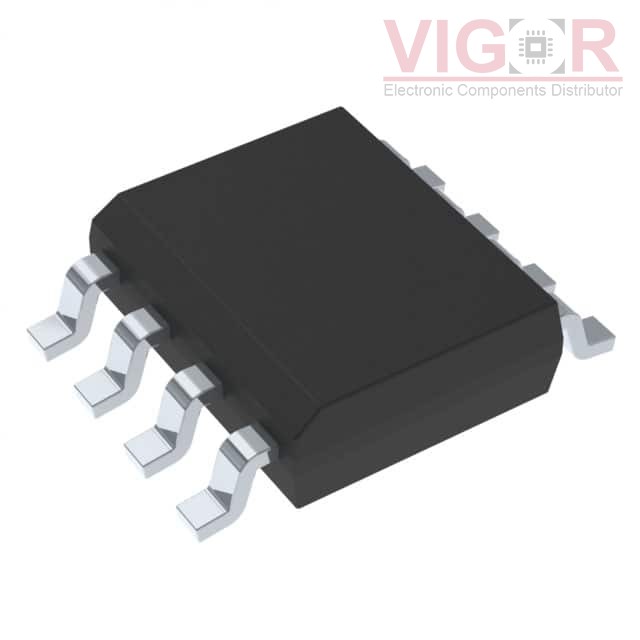

TSM8568CS RLG

Part No :: TSM8568CS RLG

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 2980737

Description: MOSFET N/P-CH 30V 15A/13A 8SOP

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: TSM8568CS RLG PDF

Current price of TSM8568CS RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM8568CS RLG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	15A (Tc), 13A (Tc)
Rds On (Max) @ Id, Vgs:	16mOhm @ 8A, 10V, 24mOhm @ 7A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7nC @ 4.5V, 11nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	646pF @ 15V, 1089pF @ 15V
Power - Max:	6W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOP

Please confirm the specifications of the products when ordering.
