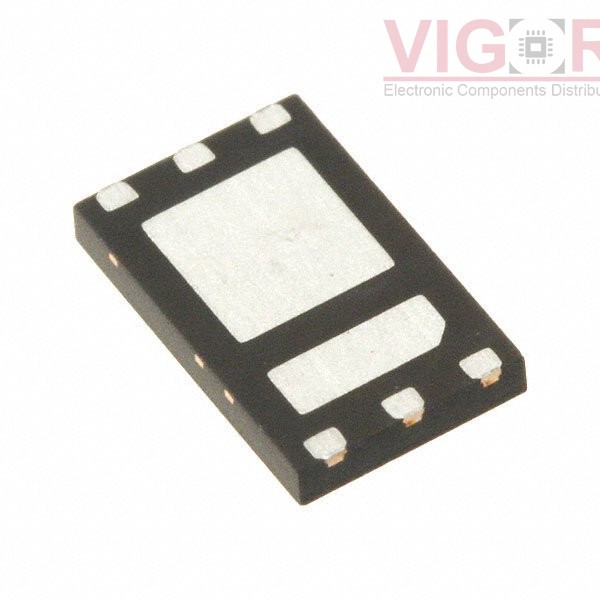

SIZ720DT-T1-GE3

Part No :: SIZ720DT-T1-GE3

Manufacturer: Vishay / Siliconix

VIGOR # :: 2980757

Description: MOSFET 2N-CH 20V 16A POWERPAIR

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SIZ720DT-T1-GE3 PDF

Current price of SIZ720DT-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIZ720DT-T1-GE3 Specifications

Type	Description
Series:	TrenchFET®
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	16A
Rds On (Max) @ Id, Vgs:	8.7mOhm @ 16.8A, 10V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	23nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	825pF @ 10V
Power - Max:	27W, 48W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-PowerPair™
Supplier Device Package:	6-PowerPair™

Please confirm the specifications of the products when ordering.
