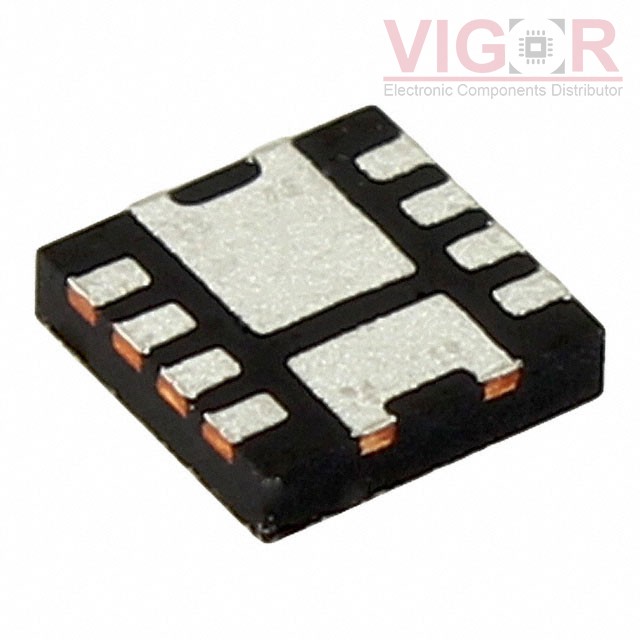

FDPC8012S

Part No :: FDPC8012S

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2980787

Description: MOSFET 2N-CH 25V 13A/26A PWR CLP

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDPC8012S PDF

Current price of FDPC8012S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDPC8012S Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	25V
Current - Continuous Drain (Id) @ 25°C:	13A, 26A
Rds On (Max) @ Id, Vgs:	7mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	1075pF @ 13V
Power - Max:	800mW, 900mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	Powerclip-33
