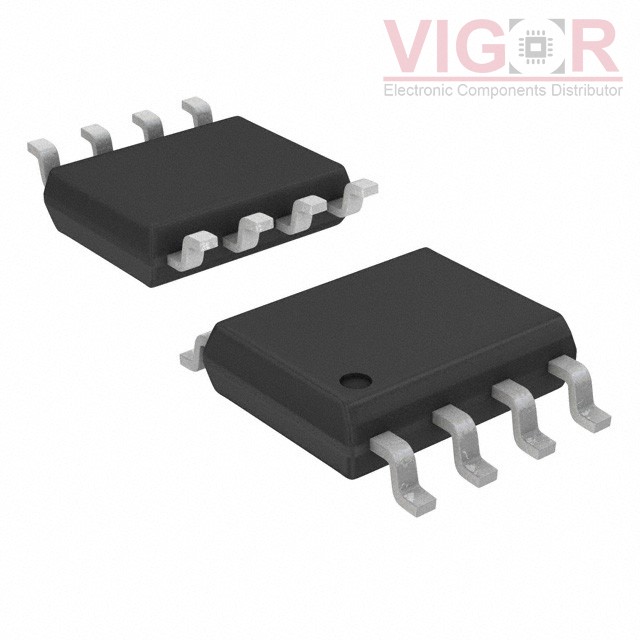

ZXMC4559DN8TC

Part No :: ZXMC4559DN8TC

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2980885

Description: MOSFET N/P-CH 60V 3.6A/2.6A 8SO

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: ZXMC4559DN8TC PDF

Country of origin: -

Date code: -

ZXMC4559DN8TC Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	3.6A, 2.6A
Rds On (Max) @ Id, Vgs:	55mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs:	20.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1063pF @ 30V
Power - Max:	2.1W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 12 - Apr 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.6200~~	~~$1.62~~
2500	~~$0.8749~~	~~$2 187.25~~
5000	~~$0.8464~~	~~$4 231.75~~
12500	~~$0.8308~~	~~$10 384.62~~

Current price of ZXMC4559DN8TC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EFC4621R-TR

MOSFET 2N-CH EFCP

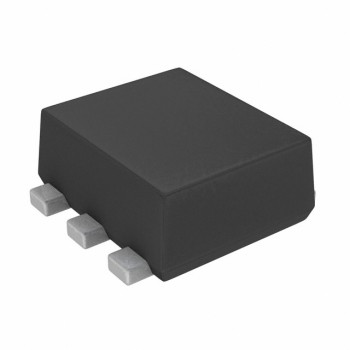

US6K4TR

MOSFET 2N-CH 20V 1.5A TUMT6

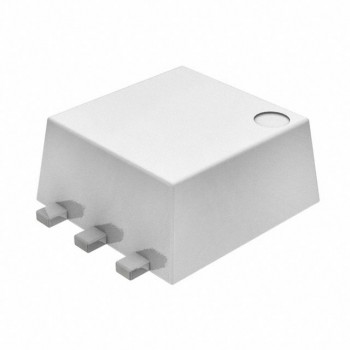

FDJ1027P
