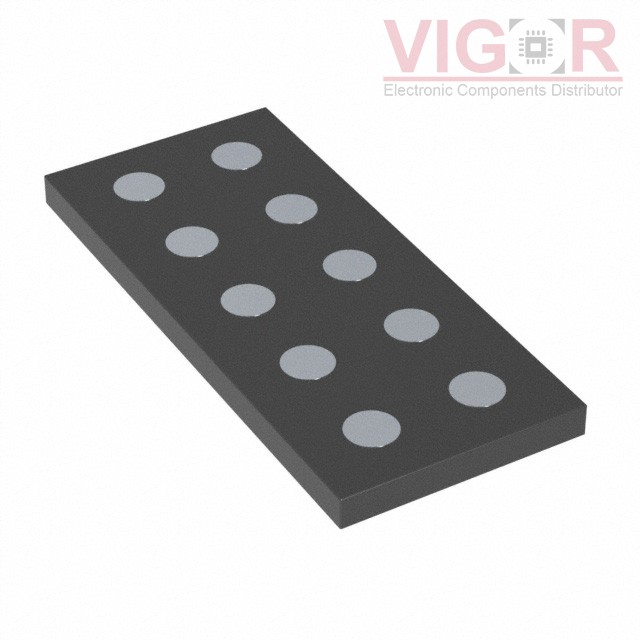

CSD87501LT

Part No :: CSD87501LT

Manufacturer: Texas Instruments

VIGOR # :: 2980908

Description: MOSFET 2N-CH 30V 10PICOSTAR

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: CSD87501LT PDF

Current price of CSD87501LT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD87501LT Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	-
Current - Continuous Drain (Id) @ 25°C:	-
Rds On (Max) @ Id, Vgs:	-
Vgs(th) (Max) @ Id:	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	-
Power - Max:	2.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-XFLGA
Supplier Device Package:	10-Picostar (3.37x1.47)

Please confirm the specifications of the products when ordering.
