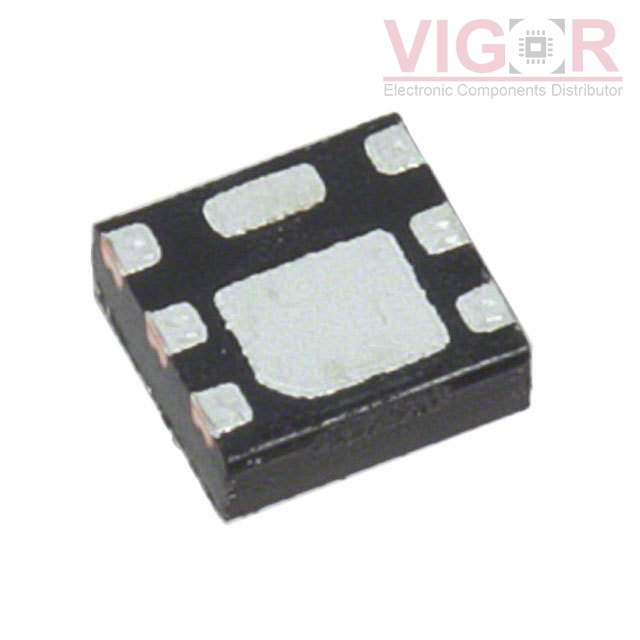

SSM6N61NU,LF

Part No :: SSM6N61NU,LF

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET 2N-CH 20V 4A UDFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SSM6N61NU,LF PDF

Availability: 0 pieces

Current price of SSM6N61NU,LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSM6N61NU,LF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate, 1.5V Drive
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	4A
Rds On (Max) @ Id, Vgs:	33mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	3.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	410pF @ 10V
Power - Max:	2W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-UDFNB (2x2)
