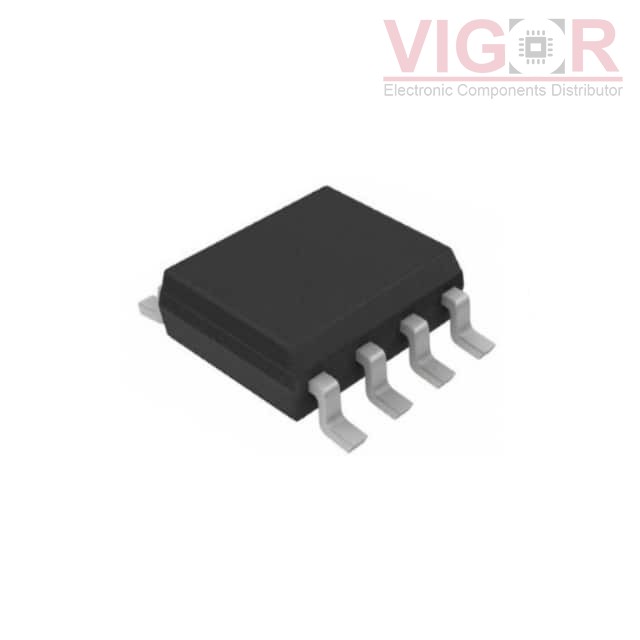

RM4503S8

Part No :: RM4503S8

Manufacturer: Rectron USA

Description: MOSFET N&P-CH 30V 10A /9.1A 8SOP

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: RM4503S8 PDF

Availability: 0 pieces

Current price of RM4503S8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RM4503S8 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	10A (Ta), 9.1A (Ta)
Rds On (Max) @ Id, Vgs:	10mOhm @ 10A, 10V, 20mOhm @ 9.1A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	13nC @ 4.5V, 30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1550pF @ 15V, 1600pF @ 15V
Power - Max:	2.5W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOP
