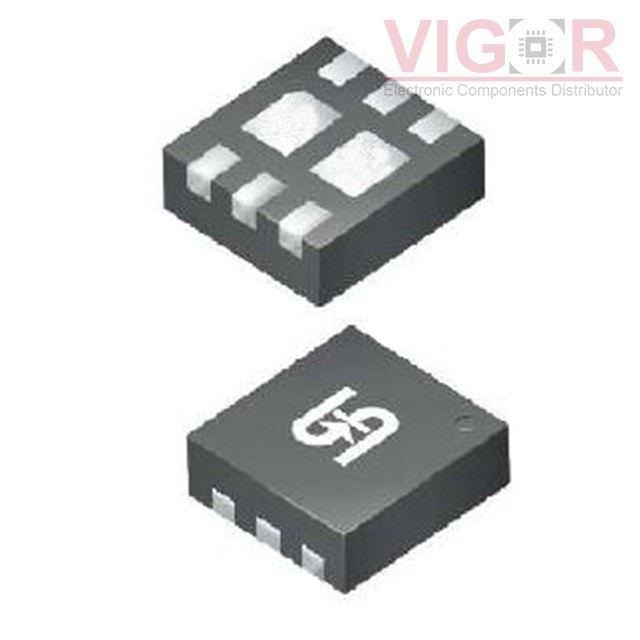

TSM250N02DCQ RFG

Part No :: TSM250N02DCQ RFG

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 2981007

Description: MOSFET 2 N-CH 20V 5.8A 6TDFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: TSM250N02DCQ RFG PDF

Current price of TSM250N02DCQ RFG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM250N02DCQ RFG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	5.8A (Tc)
Rds On (Max) @ Id, Vgs:	25mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	775pF @ 10V
Power - Max:	620mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-VDFN Exposed Pad
Supplier Device Package:	6-TDFN (2x2)
