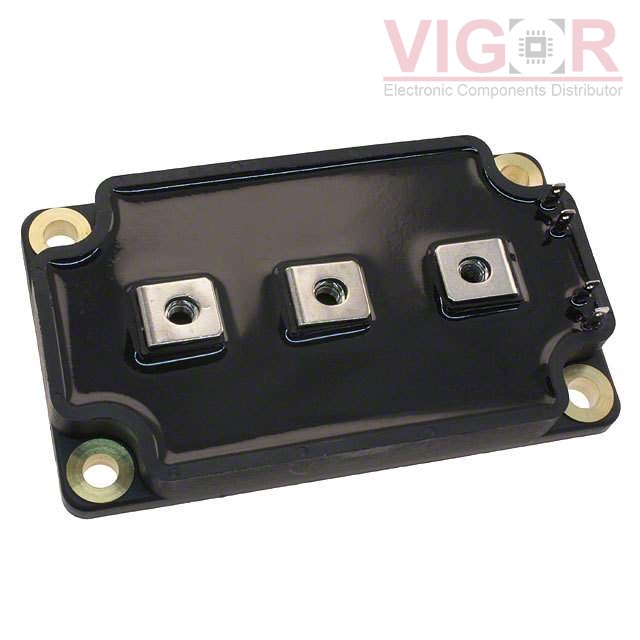

APTM100A13SG

Part No :: APTM100A13SG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2981048

Description: MOSFET 2N-CH 1000V 65A SP6

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM100A13SG PDF

Current price of APTM100A13SG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM100A13SG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	1000V (1kV)
Current - Continuous Drain (Id) @ 25°C:	65A
Rds On (Max) @ Id, Vgs:	156mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 6mA
Gate Charge (Qg) (Max) @ Vgs:	562nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	15200pF @ 25V
Power - Max:	1250W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6

Please confirm the specifications of the products when ordering.
