CSD75301W1015

Part No :: CSD75301W1015

Manufacturer: VIGOR

VIGOR # :: 2981067

Description: SMALL SIGNAL P-CHANNEL MOSFET

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: CSD75301W1015 PDF

Current price of CSD75301W1015 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD75301W1015 Specifications

Type	Description
Series:	NexFET™
Package:	Bulk
Part Status:	Obsolete
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	1.2A
Rds On (Max) @ Id, Vgs:	100mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	195pF @ 10V
Power - Max:	800mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

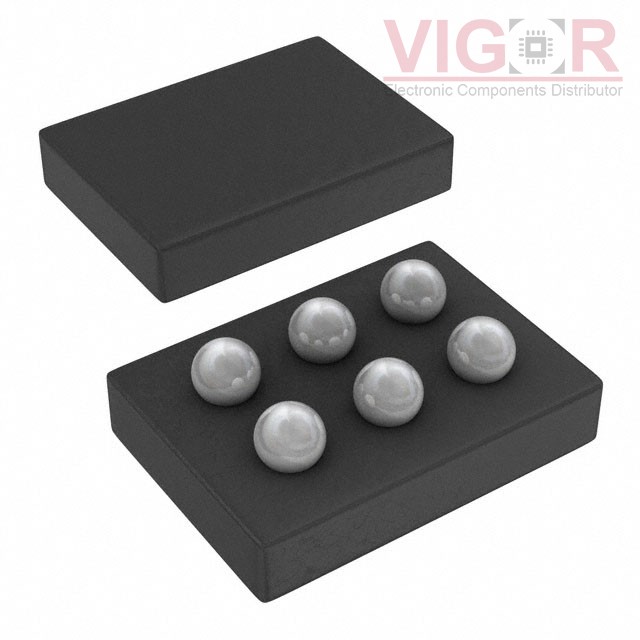

Package / Case:	6-UFBGA, DSBGA
Supplier Device Package:	6-DSBGA (1x1.5)

Please confirm the specifications of the products when ordering.
