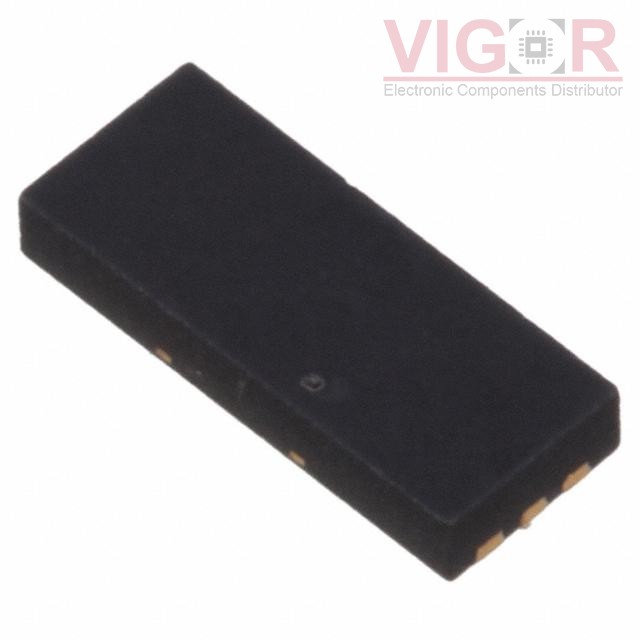

DMG5802LFX-7

Part No :: DMG5802LFX-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 2981071

Description: MOSFET 2N-CH 24V 6.5A 6DFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: DMG5802LFX-7 PDF

Current price of DMG5802LFX-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMG5802LFX-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	24V
Current - Continuous Drain (Id) @ 25°C:	6.5A
Rds On (Max) @ Id, Vgs:	15mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	31.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1066.4pF @ 15V
Power - Max:	980mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-VFDFN Exposed Pad
Supplier Device Package:	W-DFN5020-6
