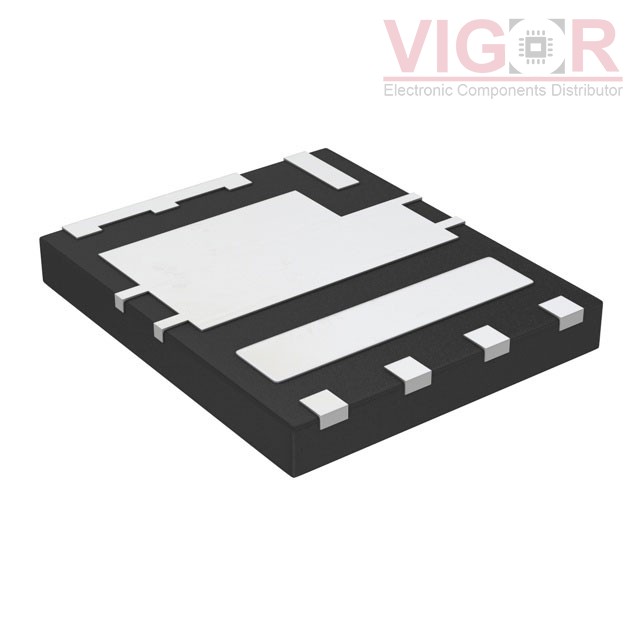

SIZF300DT-T1-GE3

Part No :: SIZF300DT-T1-GE3

Manufacturer: Vishay / Siliconix

VIGOR # :: 2981099

Description: MOSFET DUAL N-CHAN 30V PPAIR 3X3

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SIZF300DT-T1-GE3 PDF

Current price of SIZF300DT-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIZF300DT-T1-GE3 Specifications

Type	Description
Series:	TrenchFET® Gen IV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	23A (Ta), 75A (Tc), 34A (Ta), 141A (Tc)
Rds On (Max) @ Id, Vgs:	4.5mOhm @ 10A, 10V, 1.84mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	22nC @ 10V, 62nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	1100pF @ 15V, 3150pF @ 15V
Power - Max:	3.8W (Ta), 48W (Tc), 4.3W (Ta), 74W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	8-PowerPair® (6x5)

Please confirm the specifications of the products when ordering.
