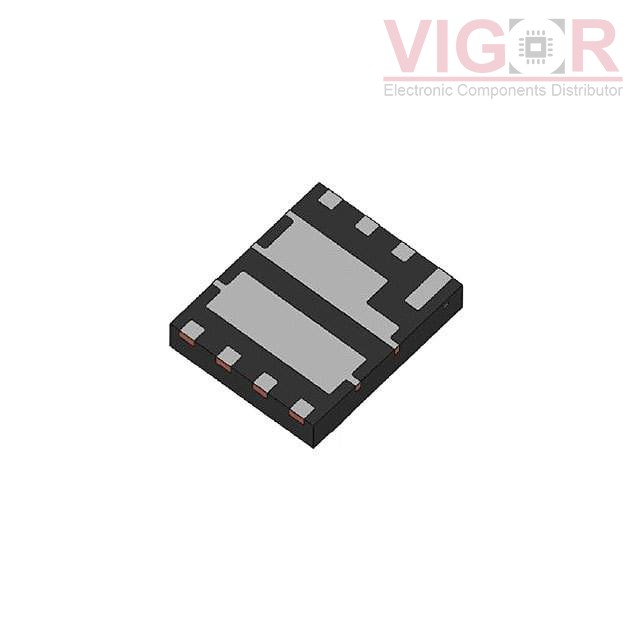

FDMD8560L

Part No :: FDMD8560L

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2981114

Description: MOSFET 2N-CH 46V 22A POWER

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDMD8560L PDF

Current price of FDMD8560L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMD8560L Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	22A, 93A
Rds On (Max) @ Id, Vgs:	3.2mOhm @ 22A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	128nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	11130pF @ 30V
Power - Max:	2.2W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	8-Power 5x6

Please confirm the specifications of the products when ordering.
