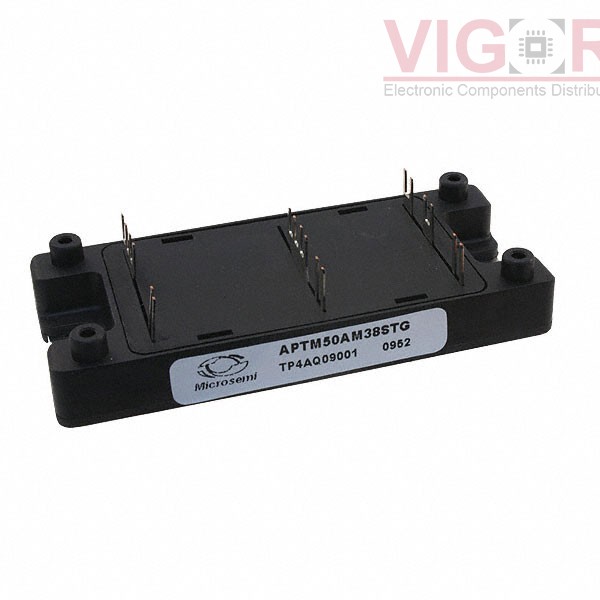

APTM50AM38STG

Part No :: APTM50AM38STG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2981133

Description: MOSFET 2N-CH 500V 90A SP4

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTM50AM38STG PDF

Current price of APTM50AM38STG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM50AM38STG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	500V
Current - Continuous Drain (Id) @ 25°C:	90A
Rds On (Max) @ Id, Vgs:	45mOhm @ 45A, 10V
Vgs(th) (Max) @ Id:	5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:	246nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	11200pF @ 25V
Power - Max:	694W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP4
Supplier Device Package:	SP4

Please confirm the specifications of the products when ordering.
