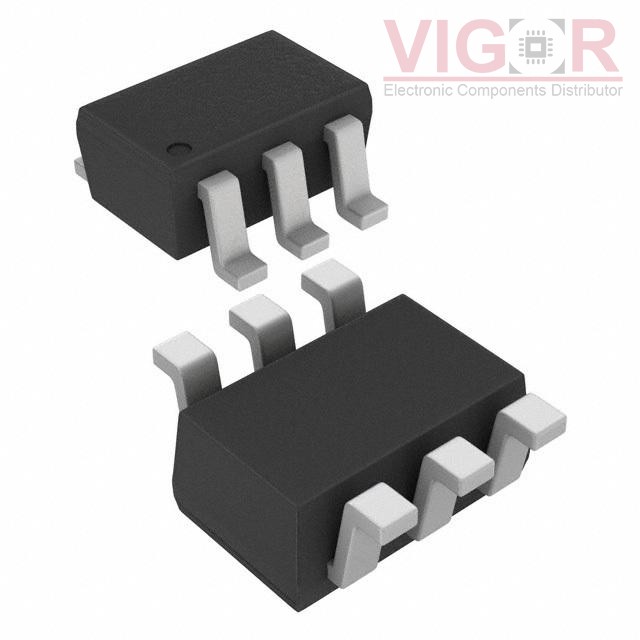

AO7800

Part No :: AO7800

Manufacturer: Alpha and Omega Semiconductor, Inc.

VIGOR # :: 2981137

Description: MOSFET 2N-CH 20V SC70-6

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: AO7800 PDF

Current price of AO7800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AO7800 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	2 N-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	900mA
Rds On (Max) @ Id, Vgs:	300mOhm @ 900mA, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	120pF @ 10V
Power - Max:	300mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-TSSOP, SC-88, SOT-363
Supplier Device Package:	SC-70-6
