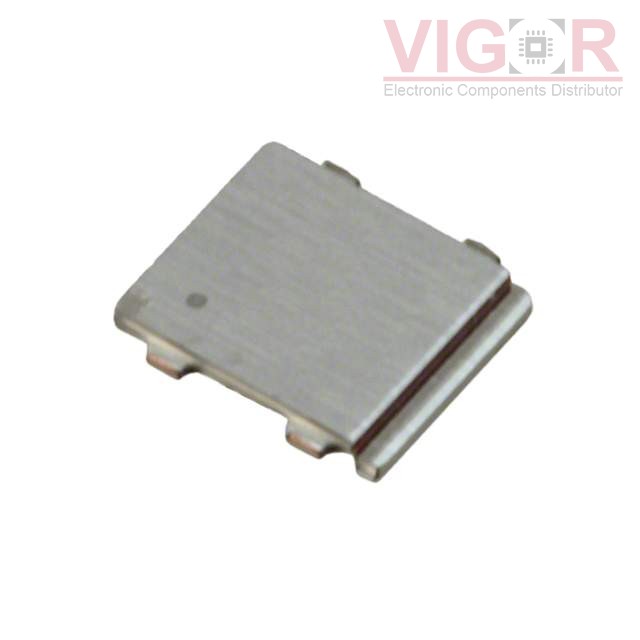

CSD87381PT

Part No :: CSD87381PT

Manufacturer: Texas Instruments

VIGOR # :: 2981187

Description: MOSFET 2N-CH 30V 15A 5PTAB

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: CSD87381PT PDF

Current price of CSD87381PT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD87381PT Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	15A
Rds On (Max) @ Id, Vgs:	16.3mOhm @ 8A, 8V
Vgs(th) (Max) @ Id:	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	564pF @ 15V
Power - Max:	4W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	5-LGA
Supplier Device Package:	5-PTAB (3x2.5)
