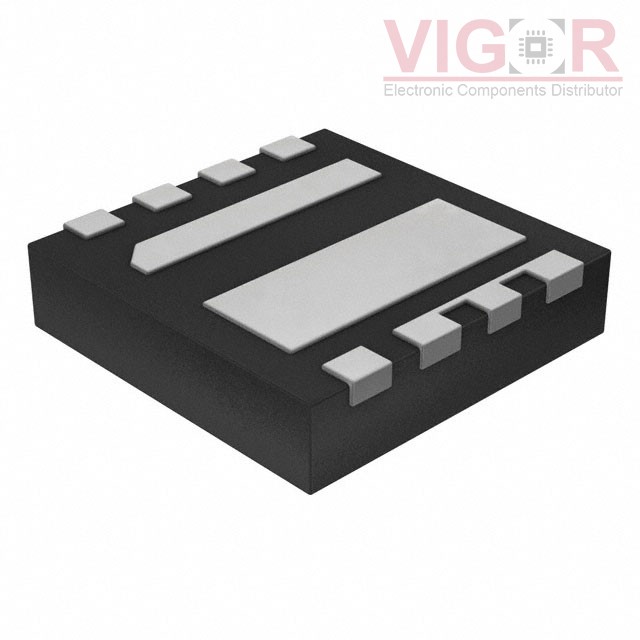

NTLLD4951NFTWG

Part No :: NTLLD4951NFTWG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 2981223

Description: MOSFET 2N-CH 30V 5.5A/6.3A 8WDFN

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: NTLLD4951NFTWG PDF

Current price of NTLLD4951NFTWG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTLLD4951NFTWG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	2 N-Channel (Dual) Asymmetrical
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	5.5A, 6.3A
Rds On (Max) @ Id, Vgs:	17.4mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	605pF @ 15V
Power - Max:	800mW, 810mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerWDFN
Supplier Device Package:	8-WDFN (3x3)
