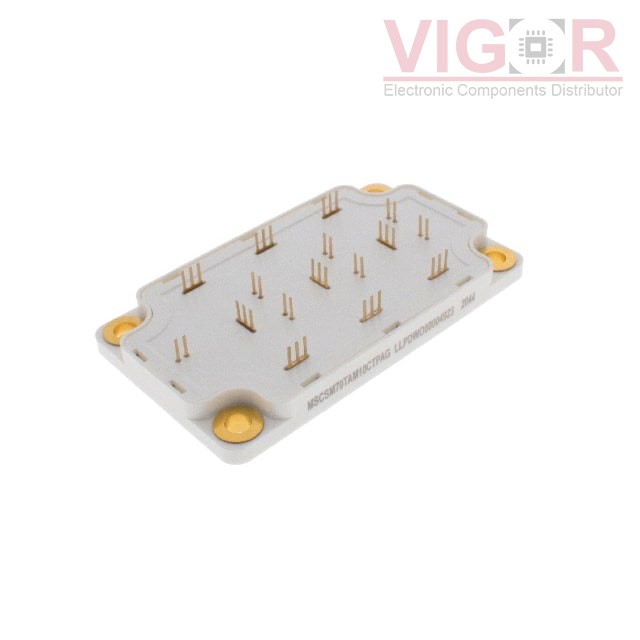

MSCSM70TAM10CTPAG

Part No :: MSCSM70TAM10CTPAG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2981293

Description: PM-MOSFET-SIC-SBD~-SP6P

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: MSCSM70TAM10CTPAG PDF

Current price of MSCSM70TAM10CTPAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MSCSM70TAM10CTPAG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	6 N-Channel (3-Phase Bridge)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	700V
Current - Continuous Drain (Id) @ 25°C:	238A (Tc)
Rds On (Max) @ Id, Vgs:	9.5mOhm @ 80A, 20V
Vgs(th) (Max) @ Id:	2.4V @ 8mA
Gate Charge (Qg) (Max) @ Vgs:	430nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	9000pF @ 700V
Power - Max:	674W (Tc)
Operating Temperature:	-40°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	SP6-P
