FD6M016N03

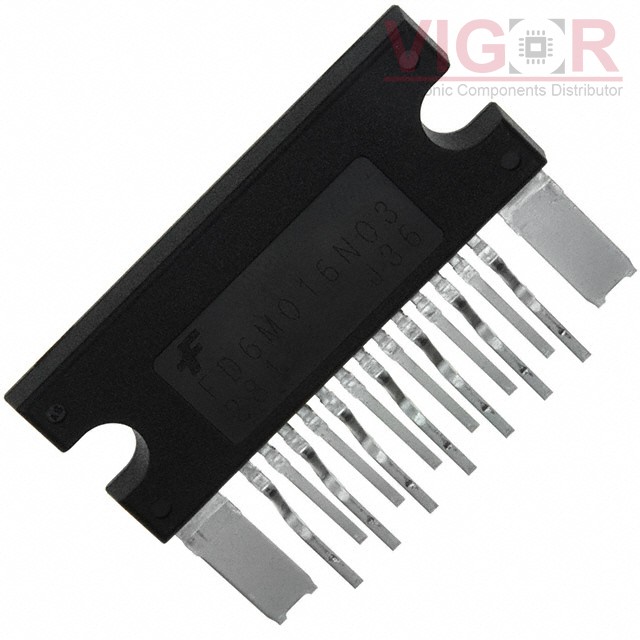

Image is for reference,
please contact us to get the real picture

Part No :: FD6M016N03

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET 2N-CH 30V 80A EPM15

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FD6M016N03 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of FD6M016N03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FD6M016N03 Specifications

Type	Description
Series:	Power-SPM™
Package:	Tube
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	30V
Current - Continuous Drain (Id) @ 25°C:	80A
Rds On (Max) @ Id, Vgs:	1.6mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	295nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:	11535pF @ 15V
Power - Max:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	EPM15
Supplier Device Package:	EPM15

Please confirm the specifications of the products when ordering.
