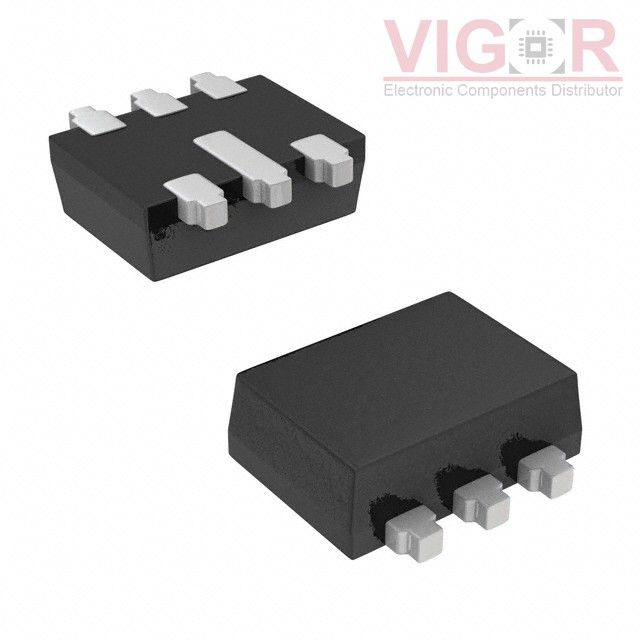

AO5803E

Part No :: AO5803E

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET 2P-CH 20V 0.6A SC89-6L

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: AO5803E PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AO5803E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AO5803E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	-
Rds On (Max) @ Id, Vgs:	800mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	100pF @ 10V
Power - Max:	400mW
Operating Temperature:	-50°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SC-89-6
