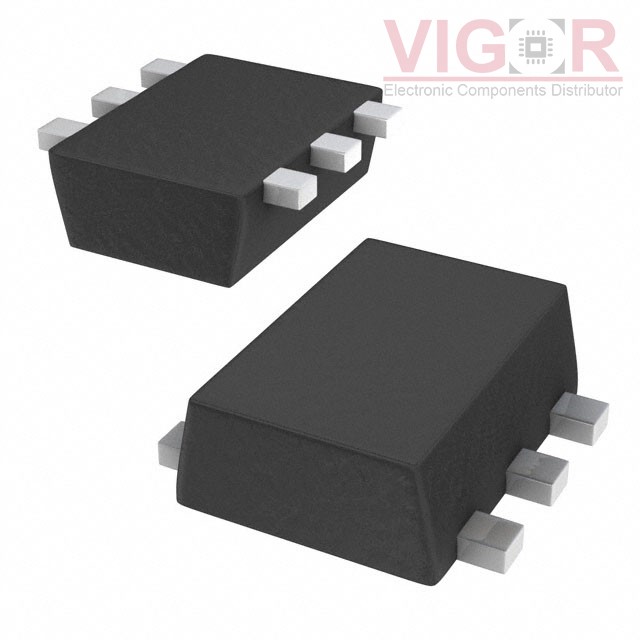

SSM6L13TU(T5L,F,T)

Part No :: SSM6L13TU(T5L,F,T)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

VIGOR # :: 4617190

Description: MOSFET N/P-CH 20V 800MA UF6

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SSM6L13TU(T5L,F,T) PDF

Current price of SSM6L13TU(T5L,F,T) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSM6L13TU(T5L,F,T) Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	800mA (Ta)
Rds On (Max) @ Id, Vgs:	143mOhm @ 600mA, 4V, 234mOhm @ 600mA, 4V
Vgs(th) (Max) @ Id:	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	268pF @ 10V, 250pF @ 10V
Power - Max:	500mW
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-SMD, Flat Leads
Supplier Device Package:	UF6

Please confirm the specifications of the products when ordering.
