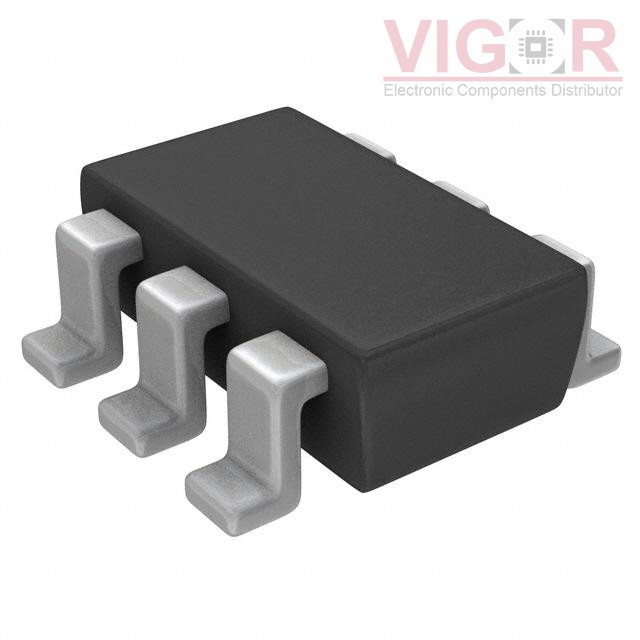

FDC6036P

Part No :: FDC6036P

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4617224

Description: MOSFET 2P-CH 20V 5A 6SSOT

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: FDC6036P PDF

Current price of FDC6036P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDC6036P Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	2 P-Channel (Dual)
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	5A
Rds On (Max) @ Id, Vgs:	44mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	992pF @ 10V
Power - Max:	900mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-SSOT Flat-lead, SuperSOT™-6 FLMP
Supplier Device Package:	SuperSOT™-6
