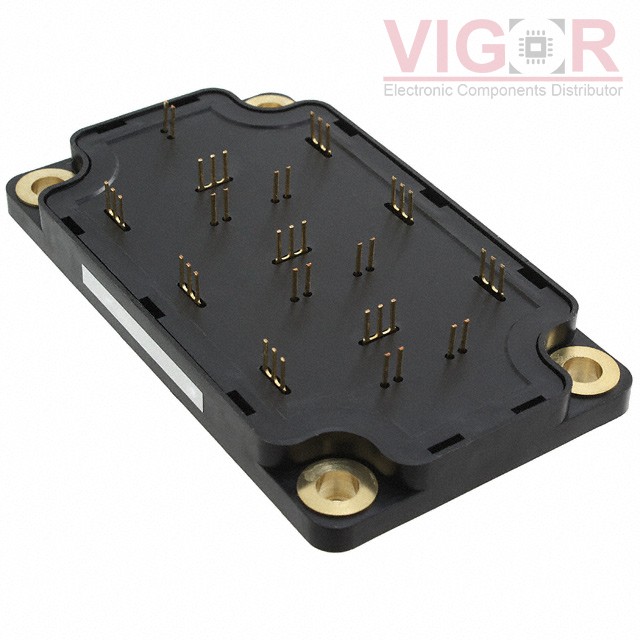

APTMC120TAM33CTPAG

Part No :: APTMC120TAM33CTPAG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4617233

Description: MOSFET 6N-CH 1200V 78A SP6-P

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: APTMC120TAM33CTPAG PDF

Current price of APTMC120TAM33CTPAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTMC120TAM33CTPAG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	6 N-Channel (3-Phase Bridge)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	78A (Tc)
Rds On (Max) @ Id, Vgs:	33mOhm @ 60A, 20V
Vgs(th) (Max) @ Id:	2.2V @ 3mA (Typ)
Gate Charge (Qg) (Max) @ Vgs:	148nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	2850pF @ 1000V
Power - Max:	370W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	SP6
Supplier Device Package:	SP6-P
