SI5509DC-T1-E3

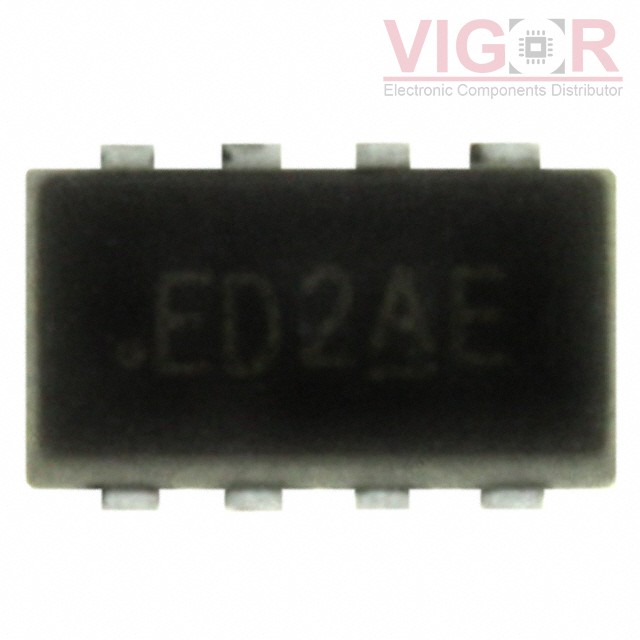

Image is for reference,
please contact us to get the real picture

Part No :: SI5509DC-T1-E3

Manufacturer: Vishay / Siliconix

Description: MOSFET N/P-CH 20V 6.1A 1206-8

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: SI5509DC-T1-E3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SI5509DC-T1-E3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SI5509DC-T1-E3 Specifications

Type	Description
Series:	TrenchFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	6.1A, 4.8A
Rds On (Max) @ Id, Vgs:	52mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	6.6nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds:	455pF @ 10V
Power - Max:	4.5W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Flat Lead
Supplier Device Package:	1206-8 ChipFET™
