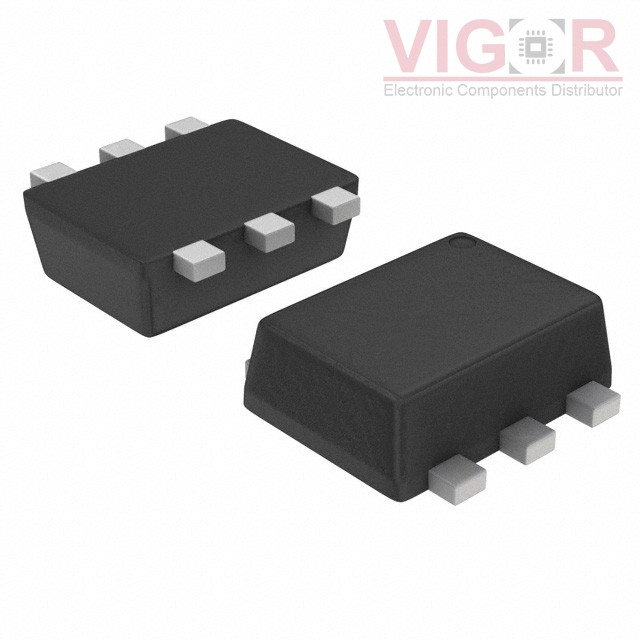

NTZD3156CT2G

Part No :: NTZD3156CT2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4617437

Description: MOSFET N/P-CH 20V SOT-563

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: NTZD3156CT2G PDF

Country of origin: -

Date code: -

NTZD3156CT2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	540mA, 430mA
Rds On (Max) @ Id, Vgs:	550mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	72pF @ 16V
Power - Max:	250mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SOT-563
