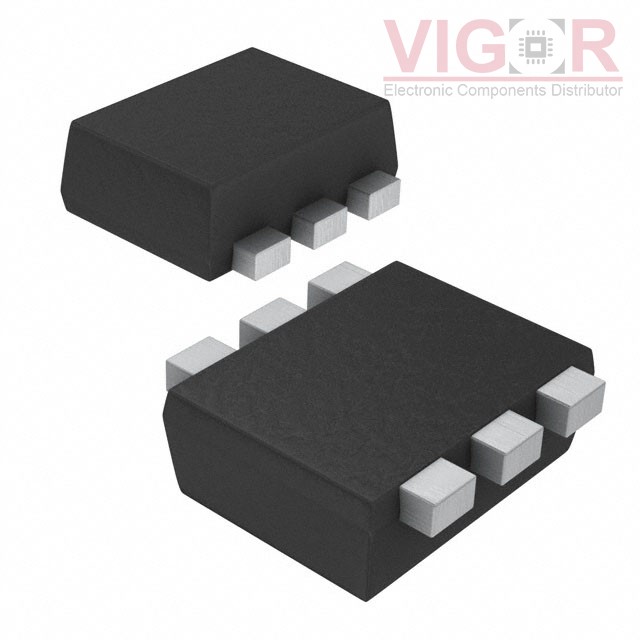

2N7002V-TP

Part No :: 2N7002V-TP

Manufacturer: Micro Commercial Components (MCC)

VIGOR # :: 4617561

Description: MOSFET 2N-CH 60V 0.28A SOT-563

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: 2N7002V-TP PDF

Current price of 2N7002V-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2N7002V-TP Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	2 N-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	60V
Current - Continuous Drain (Id) @ 25°C:	280mA
Rds On (Max) @ Id, Vgs:	2Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	50pF @ 25V
Power - Max:	150mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SOT-563

Please confirm the specifications of the products when ordering.
