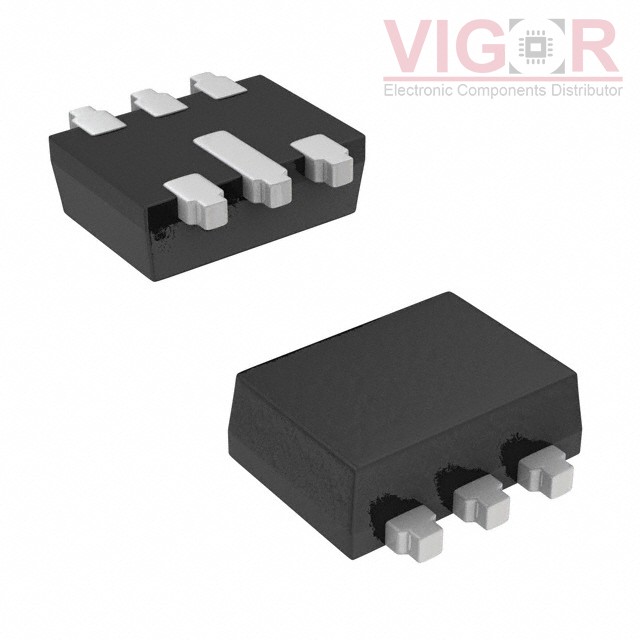

AO5600E

Part No :: AO5600E

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N/P-CH 20V SC89-6L

Catalog: Transistors - FETs, MOSFETs - Arrays

DataSheet: AO5600E PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AO5600E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AO5600E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N and P-Channel
FET Feature:	Logic Level Gate
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	600mA, 500mA
Rds On (Max) @ Id, Vgs:	650mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	45pF @ 10V
Power - Max:	380mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-563, SOT-666
Supplier Device Package:	SC-89-6
